1530 Foam CNC Router both Rotate spindle and Rotary Device

Description & COMMODITY 380V/220V
  • XY working: 1500mm*3000mm
  • Z axis inside space 1000mm Z axis working: 800mm
  • Rotate head working automatic +_90 degree working 500mm X axis

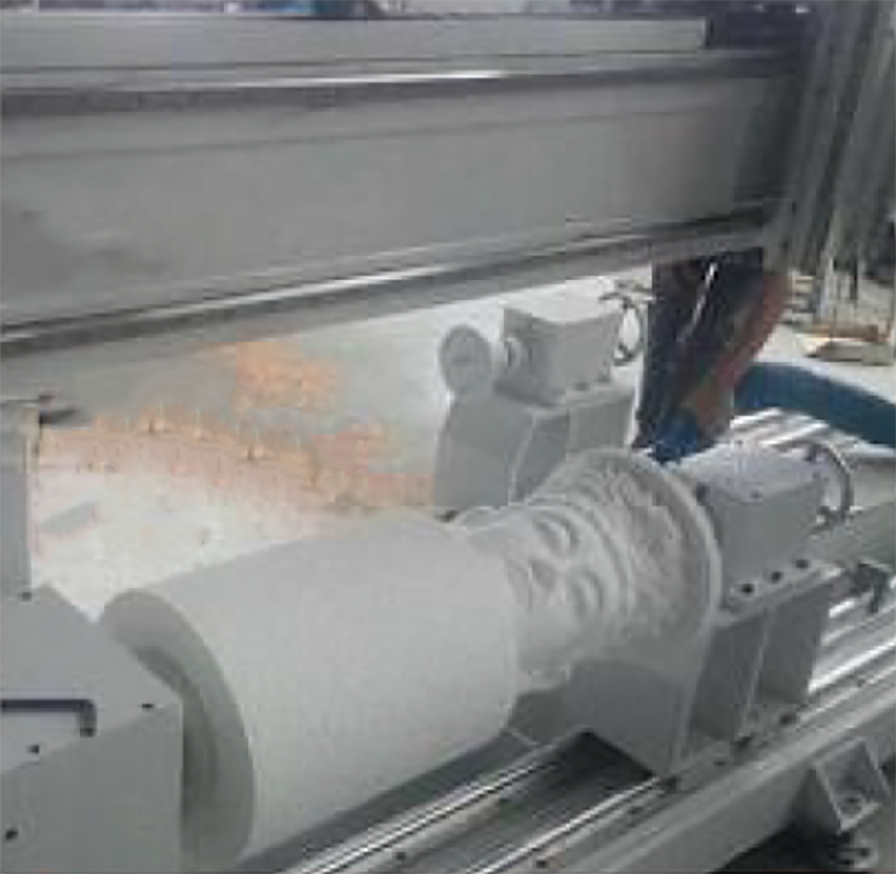

  • Rotary device rotate 360 degrees rotating max 800mm diameter
  • Spindle motor 6kw air cooled and FULING inverter 7.5kw

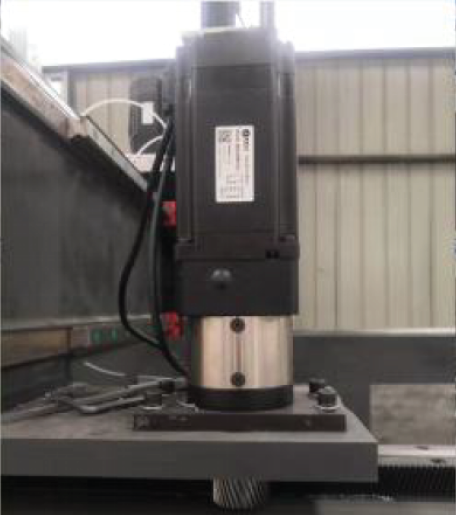

  • Servo Motors drivers LEADSHINE758, and Z has break protection
  • XYZ HIWIN linear square guide rail
  • XY Helical rack and pinon, Z Taiwan TBI ball screw
  • Table aluminum and PVC board
  • 5 Axis Controller G code and USB disk file transfer with big screen

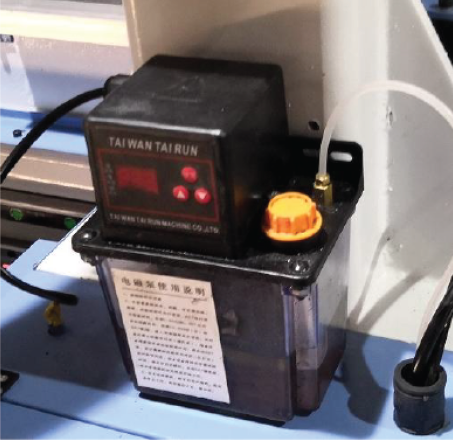

  • Automatic oil lubricating system
  • Max travel speed 35m/min
  • Max working speed 15-20m/min
  • Reposition accuracy 0.03mm/300

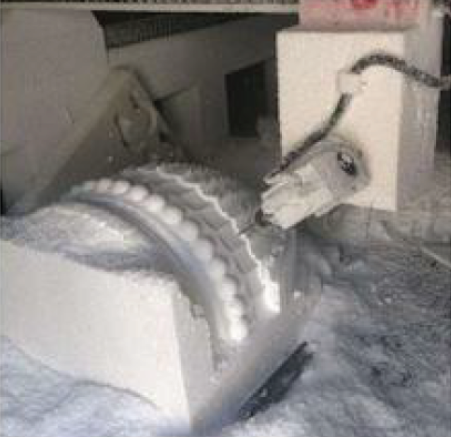

Swing rotate spindle head
XYZ Guide rail

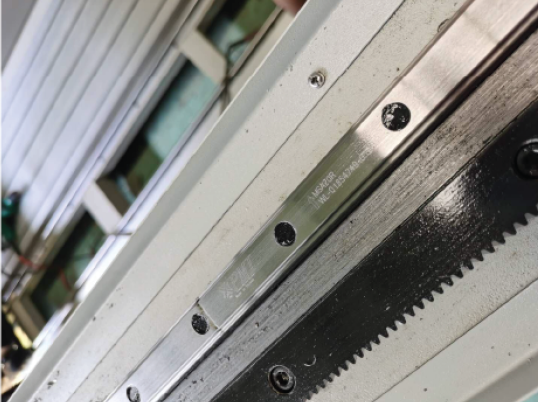

Linear Rail and Rack Gears

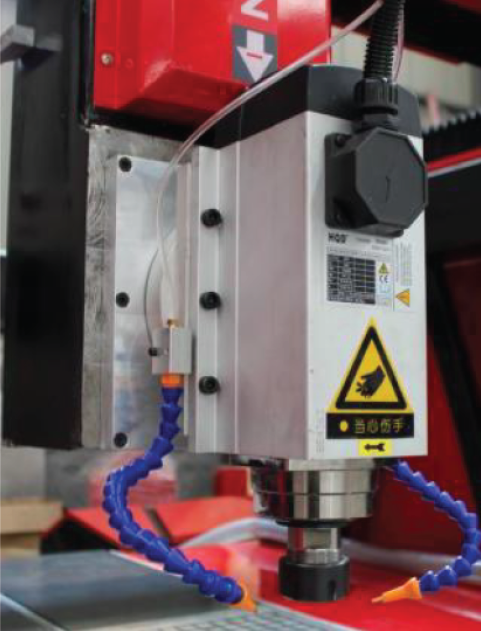

Spindle Motor
6 KW Spindle air-cooling spindle
Software
ARTCAM Software

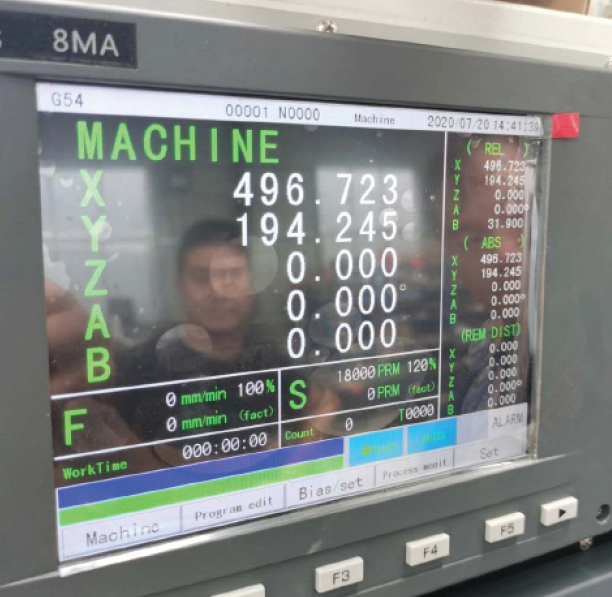

Operation System
5 Axis Taiyuan controller

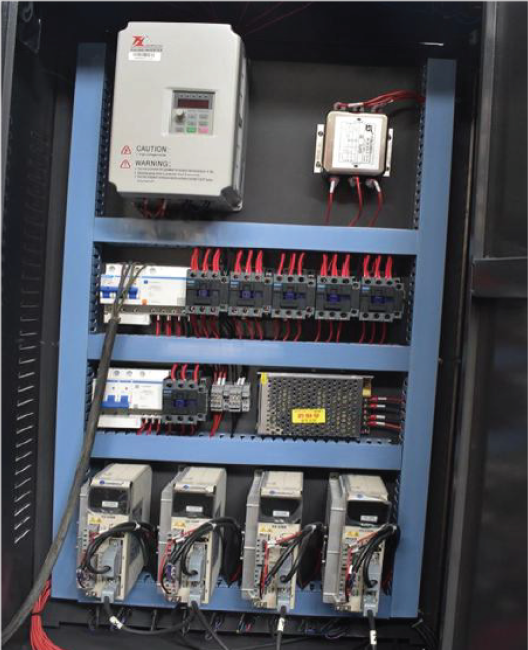

Driver
LEADSHINE 758 hybrid servo motor drivers
Spindle Speed
6000-18000RPM
Max Working Speed
15000mm/min
Working Voltage
AC220V/50Hz/60Hz 3Ph(and 380V 3Ph)
Collet
ER32
Working Size
1500*3000mm*800mm
Command Language
G code
X,Y,Z Repositioning Positioning Accuracy
0.05mm
G.W
1500KG
